Appendix GV.
The Great Central Valley Region
Contributing
Author: David Stoms
Regional Character
Land Stewardship
Plant Community Types
Regional Character
The Great Central Valley (GCV) Region (Figure GV-1) encompasses
58,627 km², consisting of the drainages of the Sacramento River
in the north (15,787 km²) and the San Joaquin River in the
south (42,840 km²). To account for the size and heterogeneity
of the region, we also conducted a gap analysis on the two subregions.
The boundary between the subregions bisects the Delta, and in the
east follows a low divide between the Cosumnes and Mokelumne river
drainages. The upper elevational limit of the region occurs at the
transition between grassland of the Valley and the foothill woodlands
in the Sierra Nevada, Central Western, Northwestern, Southwestern,
and Cascade Ranges regions. The Carrizo Plain is included in the
region because its vegetation is similar to that of the pre-settlement
San Joaquin Valley, even though it is located at 700 m elevation.
The woodlands of the Temblor Range are excluded from the region,
forming a disjunct part of the Central Western Region.

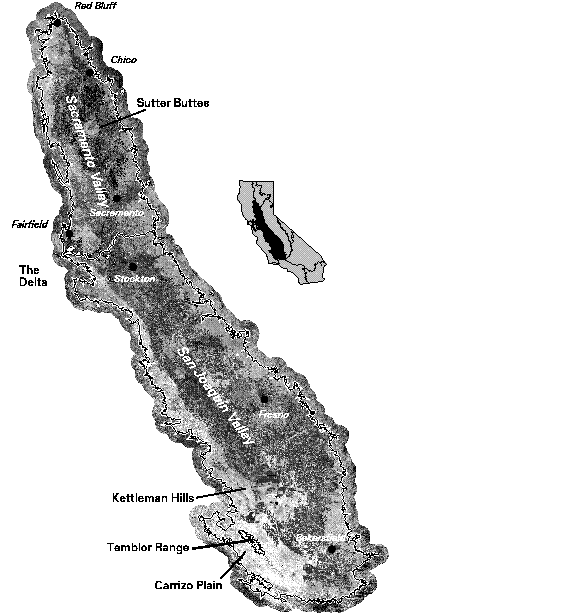

Figure GV-1. Landsat
image of the Great Central Valley (GCV) Region. Solid lines mark the
subregion boundaries.
The GCV is
an enormous plain with very little topographic relief. Sediments
lie up to 10 km deep over the Sierra Nevada basement rock. The only
major topographic feature is Sutter Buttes, an igneous outcrop rising
over 600 m above the Sacramento River Valley. Soils tend to be fertile,
lacking only adequate water in the south to be naturally productive.
Hardpan formed beneath the surface in other areas. In spring, low
lying "hogwallows" in the valley over this hardpan fills
with water, forming vernal pools which often have unique flora.
Soils around the flood basins and vernal pools are naturally alkaline
as the water evaporates and leaves behind dissolved salts. Other
vernal pools occur in the north end of the valley on volcanic soils,
while terrace pools are found on ancient flood terraces on higher
ground on the eastern side of the region. Rolling mounds, called
"mima mounds" up to 2 m high often surround these terrace
pools (Schoenherr 1992). Ancient sand dunes occur next to the Kettleman
Hills along the shoreline of extinct Lake Corcoran (Norris and Webb
1990).
The arid climate
favored the formation of grassland over all well-drained areas of
the valley. Perennial bunchgrasses dominated, especially Nassella
pulchra (Purple needlegrass, formerly Stipa pulchra).
Huge freshwater marshes formed in the depressions in the Tulare
Basin at the southern end of the region. Vernal pools were scattered
throughout the region in small depressions over hardpans of various
materials such as clay or basalt. The persistence of water later
in the spring and the high salinity of the soils created a unique
flora associated with these vernal pools. In the saline soils surrounding
the shallow lakes and marshes, alkali scrub communities were found.
Extensive riparian forests and woodlands bordered streams and rivers
on the well-watered natural levees and terraces. Every one of these
types has been extensively reduced and degraded throughout the valley
as a result of the complex interaction of grazing, agricultural
and urban development, draining of the vast wetlands, monumental
modifications of the surface hydrology for flood control and irrigation,
ground water pumping, controlling of fire, pesticide applications,
firewood cutting, and the introduction of exotic species (Barry
1972, Katibah 1984, U. S. Fish and Wildlife Service 1978, Holland
1978).
In the mountainous
and desert regions of the state, the public domain land remained
basically in federal hands. In the flat, fertile Great Central Valley,
however, nearly all land not already in Spanish or Mexican land
grants was homesteaded in the 19th century. A mere 2% of the region
that was retained in the public domain under the management of the
Bureau of Land Management (BLM). Virtually all managed areas in
this region were acquired by government agencies or private conservation
organizations in this century. Many small to medium-sized military
bases are distributed throughout the region. Greater than 90 percent
of the land area is in private ownership, primarily dedicated to
urban or agricultural uses. Only a small fraction of private land
is managed for biodiversity protection, such as The Nature Conservancy
preserves and National Audubon Society sanctuaries. Private duck
clubs own the majority of remaining non-public wetlands in the Central
Valley, which they manage for waterfowl habitat and sport hunting
(Frayer et al. 1989). Many of these clubs struggle to remain open
in the face of stiff competition for water needed to maintain the
ponds in drought years.
The geometry
of the Public Land Survey System and human settlement has been superimposed
on the geography of natural topography and hydrology of the Great
Central Valley, giving a superficial impression that the region
is homogeneous, if not monotonous. However, the underlying variation
in climate and soils still exert their influences to maintain significantly
different habitats and species assemblages. The Delta still retains
extensive wetlands. Rice fields in the north can provide wintering
habitat for migratory waterfowl while the southern valley has evergreen
citrus orchards. Forests still cling to the banks of rivers in the
north, in stark contrast to the alkali sinks in the San Joaquin
Valley where water is less plentiful. And when extreme winter precipitation
does come, satellite images reveal the normally hidden shapes of
Tulare Lake and other historic wetlands. Nature reserves must be
distributed throughout the valley to fully protect the diversity
of species and habitats.
Many of the
best examples of relic pristine habitats are now being preserved
by the joint efforts of numerous agencies and organizations. Although
biodiversity has been permanently reduced, there are still opportunities
to protect moderately high quality sites and to restore degraded
habitats to better conditions than currently exist. Previous conservation
efforts have focused on individual elements of biodiversity such
as threatened and endangered species, specific habitats such as
California prairie and riparian woodlands, or specific geographic
locations.
Land Stewardship
Figure GV-2
shows the management status in the Great Central Valley Region.
Ninety-four percent of the region is privately owned. The remainder
in public ownership is widely distributed among BLM (2.3%), DoD
military bases (1.0%), USFWS (0.8%), US Forest Service (0.1%), state
parks (0.2%), California Fish & Game (0.8%), other state lands
(0.1%), local governments (0.1%), and private conservation groups
(0.2%). The proportions are remarkably similar proportions in both
subregions. The main difference between subregions is that most
BLM land is in the San Joaquin Valley, while National Wildlife Refuges
make up a larger proportion of the Sacramento Valley subregion.

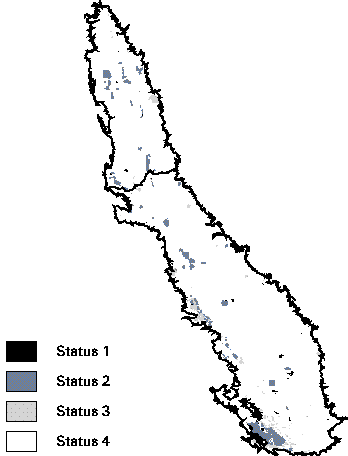

Figure GV-2. Management
status of lands in the Great Central Valley Region. See text for definitions
of management levels.
Eighty-two
status 1 and 2 managed areas were mapped for the Great Central Valley
Region, covering a combined 3.1% of the entire region (Table GV-1).
The 28 status 1 managed areas are dominated by 13 Nature Conservancy
preserves and 13 ecological reserves of the California Department
of Fish & Game. The status 2 areas include 15 USFWS national
wildlife refuge units, 29 state wildlife units, 3 state park units,
2 water district tracts, 2 BLM ACEC's, and the Carrizo Plain Natural
Area macropreserve managed jointly by the BLM, The Nature Conservancy,
and California Department of Fish and Game. The Carrizo managed
areas collectively encompass 62,852 ha of lands managed for biodiversity.
Another 1.6% is other public lands managed at status level 3. As
with ownership profiles, the distribution of management levels by
subregion closely follow the region statistics.
Of the status
1 and 2 managed areas, only two of the BLM ACEC's are greater than
10,000 ha in size. Both are on the western edge of the San Joaquin
Valley subregion. The average size is only 2,500 ha. Half of the
managed areas are less than 1,000 ha, including most of the non-governmental
organization preserves, state parks, and Fish & Game ecological
reserves and wildlife areas. This pattern of small managed areas
reflects the highly fragmented nature of the Great Central Valley,
where large, contiguous blocks of habitat seldom exist.
Table GV-1. Area
and percentage of land surface by management status level of the Great
Central Valley Region, the Sacramento Valley (SV) and San Joaquin
Valley (SJV) Subregions.
|
Great
Central Valley Region |
Sacramento
Valley Subregion |
San
Joaquin Valley Subregion |
Status |
Area
(km²) |
% |
Area
(km²) |
% |
Area
(km²) |
% |
1 |
204 |
0.3 |
76 |
0.4 |
128 |
0.3 |
2 |
1,643 |
2.8 |
454 |
2.9 |
1,189 |
2.8 |
3 |
945 |
1.6 |
138 |
0.9 |
808 |
1.9 |
4 |
55,670 |
95.2 |
14,994 |
95.7 |
40,676 |
95.0 |
Total
|
58,463 |
100.0 |
15,662 |
100.0 |
42,801 |
100.0 |
Plant Community
Types
Initial landscape
boundaries were derived from the USGS Digital Land Use and Land
Cover maps (DLULC, USGS 1986) mapping. This set of maps identify
cover and use classes according to Level 2 of the Anderson classification
system (Anderson et al. 1976), which only distinguishes broad types.
Examples of Anderson Level 2 classes include Herbaceous Rangeland
and Evergreen Forest/Woodland. Crops are also distinguished from
orchards; residential, commercial, industrial, and other urban uses
are defined. The DLULC mapping was nominally at 1:250,000 scale
from National High-Altitude Photography (NHAP) taken during the
mid-1970's. Because the photography was at the 1:60,000 scale, USGS
obtained a minimum mapping unit size of 16 ha for most classes and
4 ha for selected land uses and open water.
We first generalized
these maps by combining urban classes and deleting very small map
units to achieve the spatial resolution objective of GAP (minimum
mapping unit of 100 ha, or 1 km²). This base map was then edited
subjectively by photointerpretation of patterns in the satellite
imagery to improve registration of distinct edges and to account
for recent and use changes. Final delineation of landscape units
was an iterative process based on evidence from the satellite imagery,
1990 air photos, existing vegetation maps and field reconnaissance.
Wetlands were added from the 1:24,000 scale digital National Wetlands
Inventory (NWI) maps from the U. S. Fish and Wildlife Service, compiled
from aerial photography in the mid 1980's using a classification
based on hydrologic system and vegetation structure (Cowardin et
al. 1979). The detailed map units of NWI, which were available in
digital form only from Fresno northward at the time, were generalized
into larger landscapes for GAP purposes. Other source maps for delineating
landscapes include: relic patches of native perennial bunchgrass
prairie (Barry 1972 and redrawn by Dremann 1988); Carrizo Plain
from the Bureau of Land Management, Bakersfield District; Southern
San Joaquin Valley from the California Energy Commission (Anderson
et al. 1991); and riparian forests (Nelson and Nelson 1984).
Floristic information
was derived mainly unpublished maps produced by the VTM survey and
from our own field survey. We also relied on the maps by Barry (1972)
for species composition of relic prairie grasslands. We did not
attempt to survey the region to identify new native grassland sites
beyond those inventoried by Barry or from the NDDB. Some species
information was also obtained from the Central Valley Riparian Mapping
Project (CVRMP) maps (Nelson and Nelson 1984). Site visits were
also used to resolve discrepancies between sources or to verify
older information. Of the 2,216 landscape units mapped in the region,
322 of them, covering almost 11,000 km² or 20%, were visited
in the field during 1995. The database for the GCV Region provides
distributional information on 57 dominant species, 34 plant community
types and 20 human-dominated or unvegetated land use/cover classes,
and 33 wildlife habitat types.
Because source
information ranged widely in date and reliability, the current database
is uneven in both level of detail and accuracy. We did not have
the resources to assess the statistical accuracy of the vegetation
map and associated database. However, we have appraised the product
using less formal methods that have guided our use of the product.
The vegetation map probably overestimates the extent of agricultural
types and underestimates the extent of shrubland, riparian hardwood
and wetland types where these occur as tiny habitat remnants within
a cultivated matrix. Floristic information is more reliable in the
San Joaquin Valley subregion than in the Sacramento Valley subregion,
which was only partially covered by our field survey. Floristic
information is also more reliable on public lands than private lands.
Data on community types for small managed areas is generally based
on published information about the vegetation of the site, and so
the contents, if not the landscape boundaries, of such sites should
be reliable. The data on upland community types and wildlife habitat
types are more reliable than information on individual species or
on wetland or vernal pool habitats.
We classified
18,520 km² (31.6%) of the GCV region as vegetated other than
agricultural or urban land uses, water, or bare ground. Sixty-three
percent has been converted to agricultural uses with an additional
4.1 percent urban or industrial uses, including oil field development.
Average size for the 974 vegetated landscapes is 1,905 ha. Excluding
non-native grassland map units which tend to be large, the average
size is 805 ha.
Based on our
system for converting dominant species assemblages into natural
community types, we mapped 34 community types within the GCV region
out of 40 types described by CNDDB (Holland 1986). Nineteen other
land use/cover classes were also mapped. Seventeen of the 34 natural
community types were mapped with an area greater than 25 km².
Non-native Grassland and Valley Saltbush Scrub are by far the most
extensive types, covering 14,000 km² (76%) and 1,900 km²
(10%), respectively. Four other community types contribute an additional
8% of the region's total area of native vegetationDiablan
Sage Scrub, Coastal and Valley Freshwater Marsh, Great Valley Cottonwood
Riparian Forest, and Blue Oak Woodland. The following six natural
communities described by the CNDDB (Holland 1986) for the GCV region
were not mapped because they were not detectable by our methods:
Stabilized Interior Dunes, Sierra-Tehachapi Saltbush Scrub, Alkali
Seep, Alkali Playa Community, Buttonbush Scrub, and Elderberry Savanna.
Table GV-2. Percent
area of each CNDDB community type at each management status level
in the Great Central Valley Region.
CNDDB
Code |
CNDDB
Community Name (Holland 1986) |
CNDDB
Rank |
Status
1 % |
Status
2 % |
Status
3 % |
Status
4 % |
Total
Mapped Distribution (km²) |
Status
1+2 % |
23300 |
Monvero
Residual Dunes |
S1.2 |
0.0 |
31.0 |
0.1 |
68.9 |
3.0 |
31.1 |
32600 |
Diablan
Sage Scrub |
S3.2 |
0.0 |
5.3 |
19.1 |
75.6 |
326.6 |
5.3 |
35400 |
Rabbitbrush
Scrub |
S5 |
0.0 |
0.0 |
32.7 |
67.3 |
2.1 |
0.0 |
36210 |
Valley
Sink Scrub |
S1.1 |
1.8 |
9.4 |
0.0 |
88.7 |
250.4 |
11.2 |
36220 |
Valley
Saltbush Scrub |
S2.1 |
0.9 |
11.9 |
6.5 |
80.7 |
1,900.7 |
12.8 |
36320 |
Interior
Coast Range Saltbush Scrub |
S2.1 |
1.5 |
16.1 |
8.9 |
73.5 |
27.7 |
17.6 |
37200 |
Chamise
Chaparral |
S4 |
0.0 |
0.0 |
0.0 |
100.0 |
1.5 |
0.0 |
37400 |
Semi-Desert
Chaparral |
S3.2 |
2.2 |
17.5 |
47.3 |
33.0 |
99.8 |
19.7 |
37900 |
Scrub
Oak Chaparral |
S3.3 |
0.0 |
0.0 |
6.8 |
93.2 |
6.3 |
0.0 |
37A00 |
Interior
Live Oak Chaparral |
S3.3 |
0.0 |
0.0 |
0.0 |
100.0 |
26.4 |
0.0 |
39000 |
Upper
Sonoran Subshrub Scrub |
S3.2 |
1.4 |
50.5 |
3.8 |
44.3 |
175.2 |
51.9 |
42110 |
Valley
Needlegrass Grassland |
S3.1 |
34.7 |
0.0 |
0.0 |
65.3 |
4.1 |
34.7 |
42120 |
Valley
Sacaton Grassland |
S1.1 |
0.0 |
64.7 |
0.0 |
35.3 |
9.1 |
64.7 |
42200 |
Non-native
Grassland |
S4 |
0.9 |
4.5 |
3.6 |
91.1 |
13,996.9 |
5.4 |
44110 |
Northern
Hardpan Vernal Pool |
S3.1 |
0.0 |
0.0 |
0.0 |
100.0 |
0.1 |
0.0 |
44120 |
Northern
Claypan Vernal Pool |
S1.1 |
21.3 |
0.0 |
0.0 |
78.7 |
1.6 |
21.3 |
45310 |
Alkali
Meadow |
S2.1 |
0.0 |
0.1 |
2.1 |
97.8 |
35.2 |
0.1 |
52200 |
Coastal
Brackish Marsh |
S2.1 |
0.8 |
17.0 |
1.5 |
79.2 |
266.1 |
17.8 |
52310 |
Cismontane
Alkali Marsh |
S1.1 |
0.0 |
10.7 |
0.0 |
89.3 |
9.3 |
10.7 |
52410 |
Coastal
& Valley Freshwater Marsh |
S2.1 |
0.2 |
40.8 |
0.0 |
59.0 |
449.0 |
41.0 |
61410 |
Great
Valley Cottonwood Riparian Forest |
S2.1 |
1.5 |
17.8 |
1.1 |
79.5 |
308.8 |
19.3 |
61420 |
Great
Valley Mixed Riparian Forest |
S2.2 |
5.0 |
13.3 |
1.1 |
80.7 |
41.5 |
18.3 |
61430 |
Great
Valley Valley Oak Riparian Forest |
S1.1 |
1.2 |
4.6 |
1.3 |
92.9 |
71.2 |
5.8 |
62100 |
Sycamore
Alluvial Woodland |
S1.1 |
0.0 |
0.0 |
0.0 |
100.0 |
2.3 |
0.0 |
63410 |
Great
Valley Willow Scrub |
S3.2 |
1.0 |
0.0 |
1.4 |
97.6 |
18.9 |
1.0 |
63420 |
Great
Valley Mesquite Scrub |
S1.1 |
0.0 |
0.3 |
0.0 |
99.7 |
22.6 |
0.3 |
63810 |
Tamarisk
Scrub |
S4 |
0.0 |
12.7 |
1.5 |
85.8 |
53.0 |
12.7 |
63820 |
Arrowweed
Scrub |
S3.3 |
0.0 |
0.0 |
7.4 |
92.6 |
13.4 |
0.0 |
71130 |
Valley
Oak Woodland |
S2.1 |
0.0 |
0.1 |
0.6 |
99.3 |
29.7 |
0.1 |
71140 |
Blue
Oak Woodland |
S3.2 |
0.8 |
2.0 |
3.6 |
93.6 |
317.3 |
2.8 |
71150 |
Interior
Live Oak Woodland |
S3.2 |
0.1 |
0.0 |
1.0 |
98.9 |
17.0 |
0.1 |
71160 |
Coast
Live Oak Woodland |
S4 |
0.0 |
0.0 |
12.7 |
87.3 |
0.6 |
0.0 |
71430 |
Juniper-Oak
Cismontane Woodland |
S3.2 |
2.1 |
15.5 |
1.2 |
81.2 |
8.0 |
17.6 |
72200 |
Mojavean
Pinyon-Juniper Woodland |
S3.2/4 |
0.0 |
0.0 |
46.9 |
53.1 |
24.6 |
0.0 |
|
Region
Total - Natural Communities |
|
|
|
|
|
18,520 |
|
|
Region
Total - All Lands |
|
0.3 |
2.8 |
1.6 |
95.2 |
58,627 |
3.1 |
We call attention
to three groups of distribution by management level, including one
in which types appear to be well protected. The area of mapped distribution
and the proportions in each management level are given in Table
GV-2.
1. Plant
community types mainly on status 4 lands. Six of the 34 types
have areas greater than 25 km² with more than 90% in status
4. These types include Interior Live Oak Chaparral, Non-Native Grassland,
Alkali Meadow, Great Valley Valley Oak Riparian Forest, Valley Oak
Woodland, and Blue Oak Woodland. The Interior Live Oak Chaparral
and Blue Oak Woodland types are more common in neighboring regions
and are marginal to the Great Central Valley. Non-Native Grassland
is widespread and heavily altered by grazing and invasions of exotic
plants. The remaining three types are all ranked as 1.1 or 2.1 by
the state (California Department of Fish and Game, unpublished list,
dated 4/12/91). That is, they are considered rare and very threatened
by losses to agricultural and urban conversion or to degradation
from grazing, water diversions, or chemical pollution. Remaining
patches are often tiny remnants surrounded by disturbed lands, so
that they are hardly pristine representatives. Small amounts of
Sycamore Alluvial Woodland and Great Valley Willow Scrub and Mesquite
Scrub occur almost exclusively on private land. Valley Sink Scrub,
Valley Saltbush Scrub, and Great Valley Mixed Riparian Forest have
greater than 80% in status 4. Tamarisk Scrub, also with greater
than 80% in status 4, is considered an exotic community type.
2. Plant
community types mainly located in unprotected areas. Six of
the 34 types were mapped with areas greater than 25 km² and
with less than 10% of their distribution in Status 1 or 2 areas,
which are designated for conservation of native biodiversity. These
include Diablan Sage Scrub, Interior Live Oak Chaparral, Alkali
Meadow, Great Valley Valley Oak Riparian Forest, Valley Oak Woodland,
and Blue Oak Woodland. The Interior Live Oak Chaparral and Blue
Oak Woodland types are more typical of the surrounding foothill
regions. Mojavean Pinyon-Juniper Woodland falls just below the size
threshold, but is contiguous with similar habitat in the Central
Western and Southwestern regions. This type is at the margin of
its distribution in the southwestern corner of the Great Central
Valley region and may have unusual floristic combinations of species.
3. Community
types that appear well-protected. Two of the 34 types were mapped
with areas greater than 25 km² and with more than 25% of their
distribution in Level 1 areas. These include Upper Sonoran Subshrub
Scrub and Coastal and Valley Freshwater Marsh. Upper Sonoran Subshrub
Scrub is ranked as 3.2, or threatened, whereas Coastal and Valley
Freshwater Marsh is ranked as 2.1, or very threatened.
Several other
types are of concern to the state but not identified above because
their management profiles fall in between those of groups 1-2 and
group 3 above. Included in this group are Valley Saltbush Scrub,
Interior Coast Range Saltbush Scrub, Great Valley Cottonwood Riparian
Forest, and Great Valley Mixed Riparian Forest. All four types are
ranked by the State, however, as either threatened or very threatened,
and have suffered extreme reductions in their distributions. Similarly,
Valley Needlegrass and Valley Sacaton Grassland are largely protected
in BMA's although their extent is less than 25 km². Both are
also ranked as very threatened. The explanation for the high proportion
of status 1 and 2 land for these types is that they have been actively
protected in recent years in recognition of their rarity, the biological
significance, and the substantial historical losses. As the last
remnants of these types, additional management action may still
be needed to preserve them.
